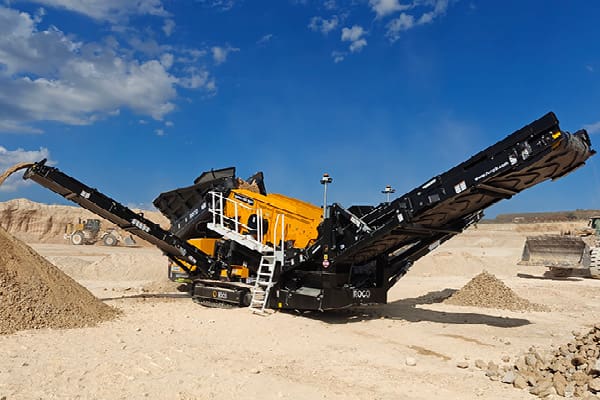

SPRINTER 1500

Scalping Screener

Specifications

Screen Size (True Screen Area)

4.2m x 1.4m (56″ x 14′)

Screenbox Angle

12° To 20°

Engine Genset

CAT 3.6 Fixed Speed / 88-100kva Alternator

Stockpile Height (Discharge)

2m – 4.15m / (6’ – 13’6”)

Side Conveyors

900mm / 36′ (Interchangeable)

360° Lighting

STANDARD

Hopper Volume (Hardox)

6m3 (7yd3)

Weight

26,640kgs (58,730lbs) – Standard Build

Output Capacity (Max)

Up To 350tph (385 US Tons)

Applications

Aggregates, Soils, Recycling, Various Minerals

Powering Forward

with Hybrid Efficiency

SCREENBOX

Eccentric throw of up to 12.5mm (1/2”)
Extra 5° screening performance on bottom deck for 100% utilisation
Adjustable speed up to 1200RPM
User-friendly access to flywheel weights
Double-access 600mm (2ft) maintenance platforms
Removable bolt-on chutes/Hardox liners

FULL HYD 2/3 WAY SPLIT

Option to convert from 3 way split to 2 way split *Patent Pending
Fully hydraulic adjustable with no removable parts
Option to discharge all clean material on one conveyor for streamlined operation
Working angle of 12 °- 20° in both configurations
platforms
Removable bolt-on chutes/Hardox liners

CHASSIS

Generous access to feed booths for easy maintenance
Rising collection conveyor for enhanced maintenance access
Superb stockpiling capacity with optional additional chassis riser

CONVEYOR

Fully reversible on unique quick release design
900mm (36″) fines and mids
All conveyors fitted with electric drive drums
Unique folding system with internal cylinders
Oversize conveyor with automatic safety guard deployment *Patent Pending
Oversize conveyor can work at full min and max angles in 2 or 3 way split positions

FAQ

What kind of screening is the Sprinter 1500 suitable for

The Sprinter 1500 is suitable for all forms of screening with its large variation of operating speeds and adjustment.

How long does it take to convert the Sprinter 1500 from a 2 to 3 way split

Within 1 minute and zero manual labour you can convert the Sprinter 1500 from a 3 product to a 2 product machine.

What sort of Applications is the Spinter 1500 suitable for

The Sprinter 1500 is suitable for aggregates, soils, recycling and various minerals

What is the fuel consumption on the Sprinter 1500

The fuel consumption for the Sprinter 1500 is on average 9 litres per hour

Is the Sprinter 1500 suitable for urban projects

The Sprinter 1500 is perfect for urban projects thanks to its fully electric capability and exceptionally low noise output, making it an excellent choice for city environments.
